Gear boxes / Geared Motors

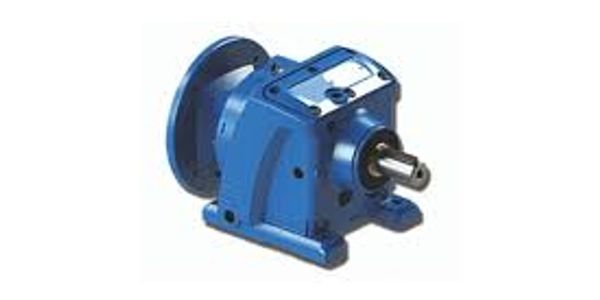

DESIGN CONCEPTS: the combination of standardization and modularization allows interchangeability with international leading brands, while keeping structure rigidity and compactness.
ENERGY EFFICIENCY: leveraging the advantage of high accuracy of helical gears, the reducers perform at 90% efficiency with higher stability and lower noise level.
RATIOS COVERAGE: 1~3 stages of reduction provides a wide range of ratio accommodation from 1/1.3~1/27788.
LOADING CAPACITY: available with power ranges from 1/4hp up to 150hp depending on different requirements and applications.
TENSILE STRENGTH: pinion and gears are made with 20CrMo alloy steel plus carburizing heat treatment to enhance performance; the input pinion is equipped with double bearing support to provide stability at high speed.
COMPLETE SERIES: vertical and horizontal mounting along various input mechanism ensure the products meet a wide range of applications.
INSTALLATION FLEXIBILITY: all models are designed for a choice of mounting position (M1~M6) specified by customers.
APPEARANCE AESTHETICS: the products are designed with modern exterior while maintaining high rigidity..

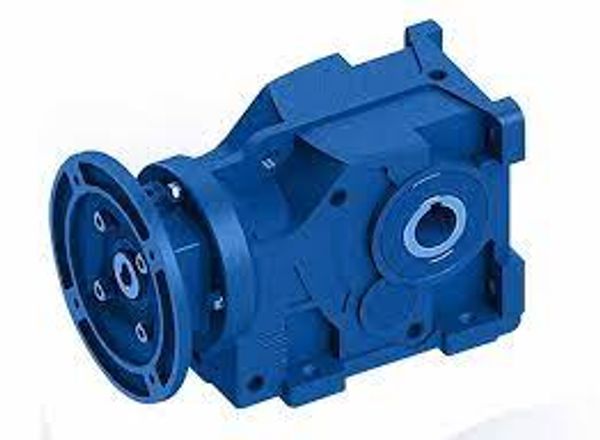

DESIGN CONCEPTS: the combination of standardization and modularization allows interchangeability with international leading brands, while keeping structure rigidity and compactness.
ENERGY EFFICIENCY: leveraging the advantage of high accuracy of helical gears, the reducers perform at 90% efficiency with higher stability and lower noise level.
RATIOS COVERAGE: 3 stages of reduction provide a wide range of ratio accommodation from 1/8~1/215 more than worm gear reducers.
LOADING CAPACITY: available with power ranges from 1/4hp up to 60hp depending on different requirements and applications.
TENSILE STRENGTH: bevel gears and helical gears are made with 20CrMo alloy steel plus carburizing heat treatment to enhance performance.
SPACE EFFICIENCY: 90° transmission and compact configuration for minimizing mounting space.
INSTALLATION FLEXIBILITY: all models are designed for a choice of mounting position (M1~M6) specified by customers.
APPEARANCE AESTHETICS: the products are designed with modern exterior while maintaining high rigidity.

DESIGN CONCEPTS: the combination of standardization and modularization allows interchangeability with international leading brands, while keeping structure rigidity and compactness.
ENERGY EFFICIENCY: leveraging the advantage of high accuracy of helical gears, the reducers perform at 90% efficiency with higher stability and lower noise level.
RATIOS COVERAGE: 2~3 stages of reduction provides a wide range of ratio accommodation from 1/4~1/254.
LOADING CAPACITY: available with power ranges from 1/4hp up to 60hp depending on different requirements and applications.
TENSILE STRENGTH: pinion and gears are made with 20CrMo alloy steel plus carburizing heat treatment to enhance performance.
SPACE EFFICIENCY: compact configuration for minimizing mounting space.
INSTALLATION FLEXIBILITY: all models are designed for a choice of mounting position (M1~M6) specified by customers.
APPEARANCE AESTHETICS: the products are designed with modern exterior while maintaining high rigidity.

Design Concepts: The combination of standardization and modularization allows interchangeability with international leading brands, while keeping structure rigidity and compactness.
Energy Efficiency: Leveraging the advantages of high efficiency of helical gears and smooth transmission of worm gears, the reducer performs with outstanding stability and efficiency as high as 85%.
Ratios Coverage: The ratio ranges between 1/8 ~ 1/210, providing wide range of ratio accommodation, with 2 stages of reduction.
Loading Capacity: Available with power ranges from 1/4HP up to 30HP, depending on different requirements and applications.
Tensile Strength: Pinion, gears and worm shafts are made with 20CrMo alloy steel with carburization; the aluminum bronze worm wheels offers superior strength and endurance.
Self-Lock: In certain condition, the load on the worm gear can’t drive the worm.
Installation Flexibility: All models are designed for a choice of mounting position (M1~M6) specified by customers.
Appearance Aesthetics: The reducers are designed with modern exterior while maintaining high rigidity.

The casing is made of closely-grained FG-260 Grade C.I
The Gearbox is provided with well-designed fins and fans for adequate dissipation of heat
The design is based on BS 721:1963 Class A standards
The Gearbox Design is modular and makes it interchangeable with other standard gearboxes
The Worm shaft is built with high-quality case-hardened steel that is precision-manufactured and ground-finished for better performance
Both Worm & Worm Wheel Shafts are mounted on High-quality Taper Roller / Angular contact Bearings to handle axial thrust and overhung loads
All Worm Gearboxes are available in Ratios of 5:1 to 70:1
Type- Horizontal/Vertical/Adaptable Gearbox

Mounted directly on the shaft and does not require a foundation.
Eliminates the need for coupling and potential alignment variations.
Options: Foot Mount/Flange Mount/Motor Mounting/Vertical Shaft Mounting/Back Stop.
Comes in 8 sizes B, C, D, E, F, G, H & J.
Maximum Torque (O/P) – 6995 Nm @10rpm.
3 Ratios 5:1, 13:1, and 20:1
A wide range of output speeds can be obtained by using appropriate input V-Belt drives.
Choice of alternative hub bores.
Delivers 98% efficiency per stage of reduction.

Vibrator Motor

Rugged construction to withstand tough environments
Motor winding is vacuum impregnated
Completely dustproof air-cooled design to operate in dusty environments. Complies with IP55 specification
F-Class winding: Impervious to dust, moisture, and vibrations
Terminal box connector sealed with a layer of resin to prevent damage due to vibrations
Vibration force adjustable from zero to maximum by fine-tuning the position of unbalance weights provided on both sides of the motor shaft
Driveshaft made from oversized alloy steel to withstand stress at high speeds
Body made from high-grade SG Iron material for bigger & Cast Iron for smaller sizes.
Maintenance-free sealed imported pre-lubricated heavy bearings
The amplitude of vibration can be controlled
Noise-free performance
Thermal overload protection:
- 3 PTC (Positive thermal coefficient) Thermistor 130°C for bigger sizes.
- 3 TOP (Thermal overload protector) bi-metallic switch 145°C for smaller sizes
Permanent and legible markings for the settings of the unbalance weights
